Symoto High Quality 37 Tooth 428 Pitch SDG Rear Sprocket

Description

PLEASE NOTE THESE SPROCKETS WILL ONLY FIT SDG TYPE WHEELS SUCH AS THOSE FITTED TO THE CW, STOMP, DEMON X BIKES, M2R ETC

SUPPLIED WITH FIXING BOLTS AND LOCKING TABS

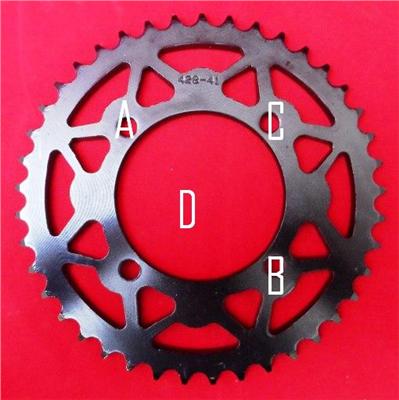

CENTRE HUB HOLE IS 76mm (D in 2nd photo), DIAGONALLY ACROSS MOUNTING HOLES ARE 92mm TO HOLE CENTRES (A to B centres in 2nd photo), 65mm FROM HOLE TO NEXT HOLE CENTRE (A to C in 2nd photo) SPROCKET IS 7mm THICK. TO CALCULATE YOUR CHAIN/SPROCKET PIT IF YOU ARE UNSURE SIMPLY MEASURE THE THICKNESS OF A SPROCKET. 6mm THICK IS 420 PITCH, 7mm THICK IS 428 PITCH.

2ND PHOTO IS FOR ILLUSTRATION PURPOSES OF DIMENSIONS ONLY

PLEASE CHECK MEASUREMENTS PRIOR TO PURCHASE.
